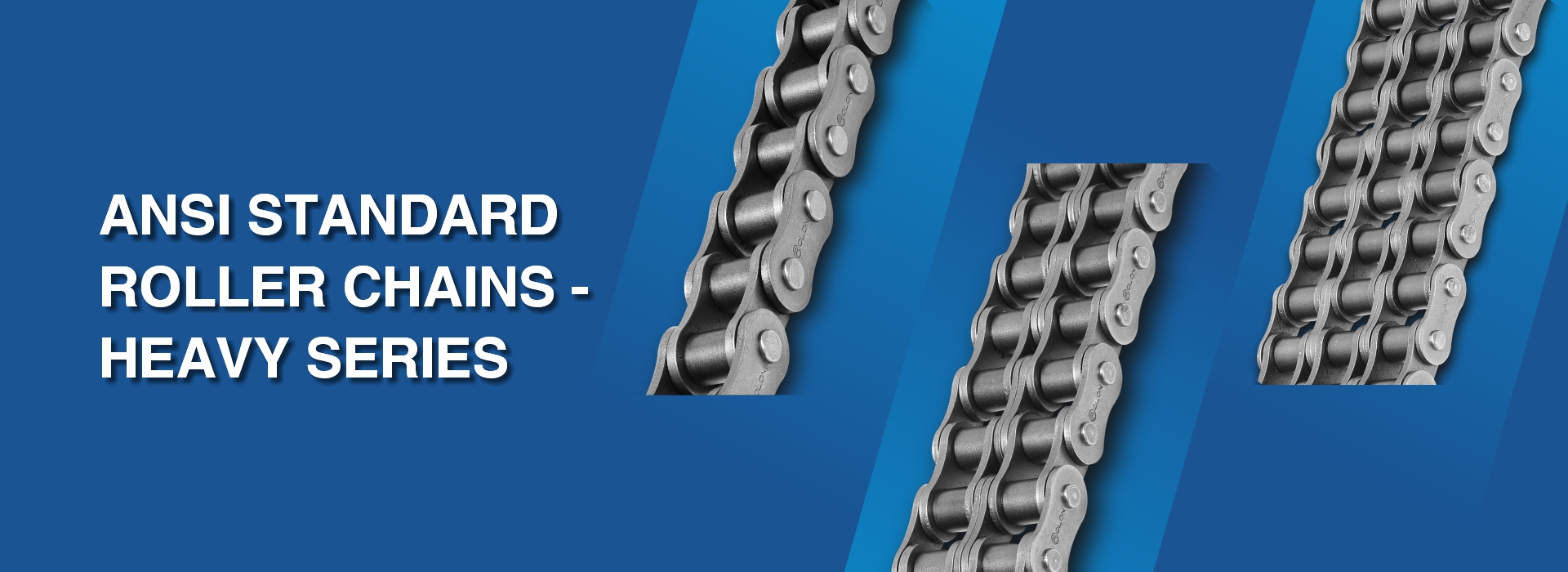

Ansi Standard Roller Chains - Heavy Series - L.G.Balakrishnan & Bros Ltd

Home » Products » Ansi Standard Roller Chains – Heavy Series

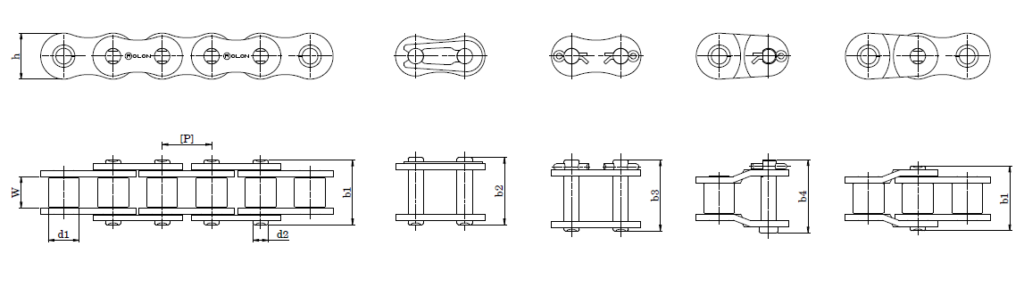

ANSI STANDARD ROLLER CHAINS - HEAVY SERIES - SIMPLEX

ANSI / ASME B 29.1M / DIN 8188 / ISO 606

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width		Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
R60H	60H-1	19.05	12.57	11.91	30.20	5.96	34.80	18.10	34.80	-	3192	1.92
R80H	80H-1	25.40	15.75	15.88	37.40	7.94	42.80	24.13	42.80	-	5670	3.18
R100H	100H-1	31.75	18.90	19.05	44.50	9.54	50.60	30.17	-	50.60	8872	4.57
R120H	120H-1	38.10	25.22	22.23	55.00	11.11	61.60	36.20	-	61.60	12747	6.67
R140H	140H-1	44.45	25.22	25.40	59.00	12.70	66.40	42.23	-	66.40	17336	8.60
R160H	160H-1	50.80	31.55	28.58	69.40	14.29	77.30	48.26	-	77.30	22740	11.20

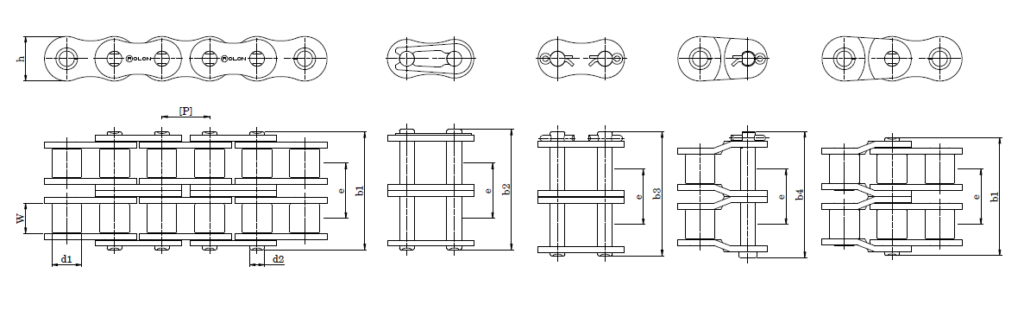

ANSI STANDARD ROLLER CHAINS - HEAVY SERIES - DUPLEX

ANSI / ASME B 29.1M / DIN 8188 / ISO 606

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width		Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
DR60H	60H-2	19.05	12.57	11.91	56.30	5.96	26.11	60.90	18.10	60.90	-	6384	3.79
DR80H	80H-2	25.40	15.75	15.88	70.00	7.94	32.59	75.40	24.13	75.40	-	11340	6.30
DR100H	100H-2	31.75	18.90	19.05	83.60	9.54	39.09	89.70	30.17	-	89.70	17744	9.90
DR120H	120H-2	38.10	25.22	22.23	103.90	11.11	48.87	110.50	36.20	-	110.50	25493	13.23
DR140H	140H-2	44.45	25.22	25.40	111.20	12.71	52.20	118.60	42.23	-	118.60	34671	17.06
DR160H	160H-2	50.80	31.55	28.58	131.30	14.29	61.90	139.20	48.26	-	139.20	45480	23.50

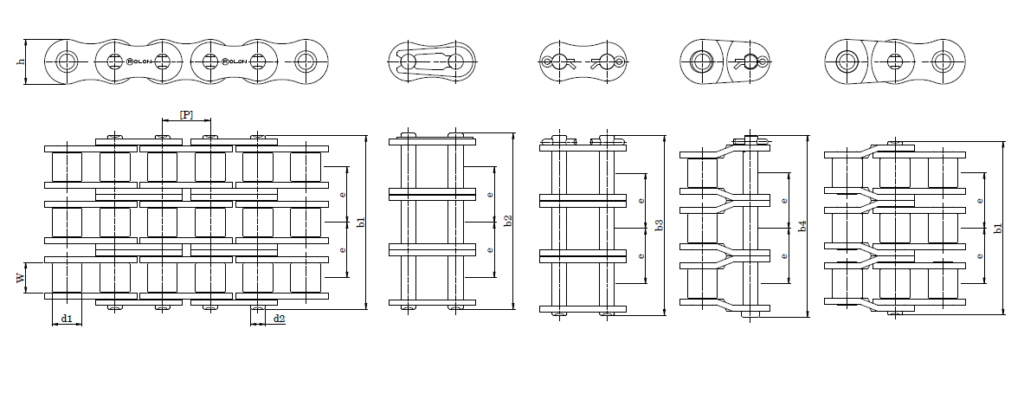

ANSI STANDARD ROLLER CHAINS - HEAVY SERIES - TRIPLEX

ANSI / ASME B 29.1M / DIN 8188 / ISO 606

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width		Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
TR60H	60H-3	19.05	12.57	11.91	82.40	5.96	26.11	87.00	18.10	87.00	-	9576	5.67
TR80H	80H-3	25.40	15.75	15.88	102.60	7.94	32.59	108.00	24.13	108.00	-	17009	9.42
TR100H	100H-3	31.75	18.90	19.05	122.70	9.54	39.09	128.80	30.17	-	128.80	26615	13.61
TR120H	120H-3	38.10	25.22	22.23	152.80	11.11	48.87	159.40	36.20	-	159.40	38240	19.79
TR140H	140H-3	44.45	25.22	25.40	163.40	12.71	52.20	170.80	42.23	-	170.80	52007	25.10
TR160H	160H-3	50.80	31.55	28.58	193.20	14.29	61.90	201.10	48.26	-	201.10	68220	35.20
