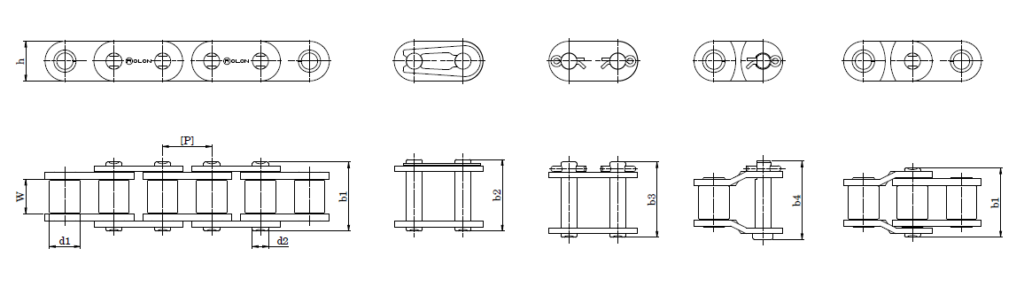

BIRTISH STANDARD STRAIGHT SIDE PLATE ROLLER CHAINS - SIMPLEX

ISO 606 / DIN 8187 / BS 228

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
R1278S	08B-1	12.70	7.75	8.51	17.00	4.51	20.90	11.81	20.90	1816	0.79
R1595S	10B-1	15.875	9.65	10.16	19.60	5.08	23.70	14.73	23.70	2264	1.03
R1911S	12B-1	19.05	11.68	12.07	22.70	5.72	27.30	16.13	27.30	2947	1.32
R2517S	16B-1	25.40	17.02	15.88	36.10	8.28	41.50	21.08	41.50	6119	2.75

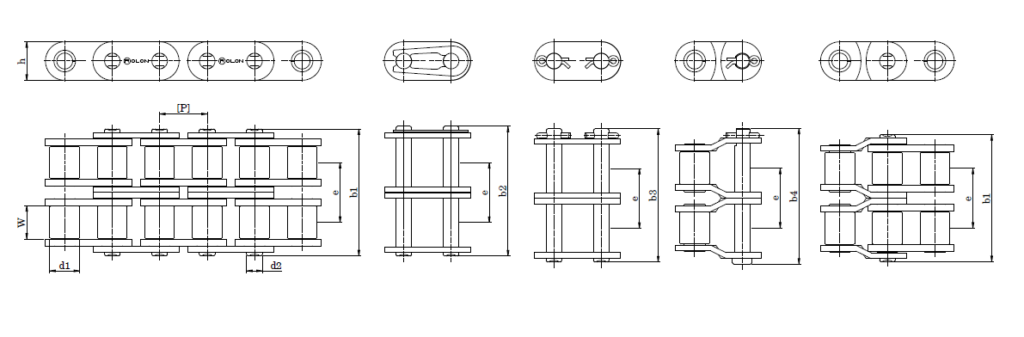

BIRTISH STANDARD STRAIGHT SIDE PLATE ROLLER CHAINS - DUPLEX

ISO 606 / DIN 8187 / BS 228

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
DR1278S	08B-2	12.70	7.75	8.51	31.00	4.51	13.92	34.90	11.81	34.90	3172	1.46
DR1595S	10B-2	15.875	9.65	10.16	36.20	5.08	16.59	40.30	14.73	40.30	4538	2.03
DR1911S	12B-2	19.05	11.68	12.07	42.20	5.72	19.46	46.80	16.13	46.80	5894	2.61
DR2517S	16B-2	25.40	17.02	15.88	68.00	8.28	31.88	73.40	21.08	73.40	10809	5.46

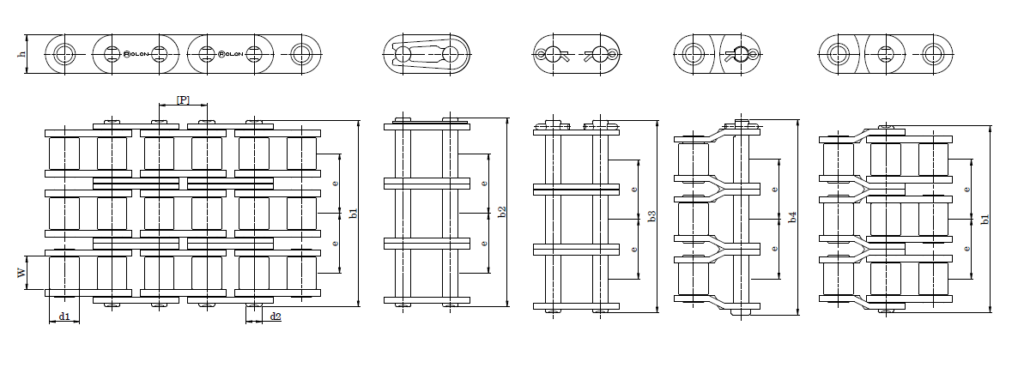

BIRTISH STANDARD STRAIGHT SIDE PLATE ROLLER CHAINS - TRIPLEX

ISO 606 / DIN 8187 / BS 228

ROLON Chain Specifications

ROLON Part No	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
TR1278S	08B–3	12.70	7.75	8.51	44.90	4.51	13.92	48.80	11.81	48.80	4538	2.14
TR1595S	10B–3	15.875	9.65	10.16	52.80	5.08	16.59	56.90	14.73	56.90	6802	3.04
TR1911S	12B–3	19.05	11.68	12.07	61.70	5.72	19.46	66.30	16.13	66.30	8841	3.89
TR2517S	16B–3	25.40	17.02	15.88	99.90	8.28	31.88	105.30	21.08	105.30	16316	8.18
