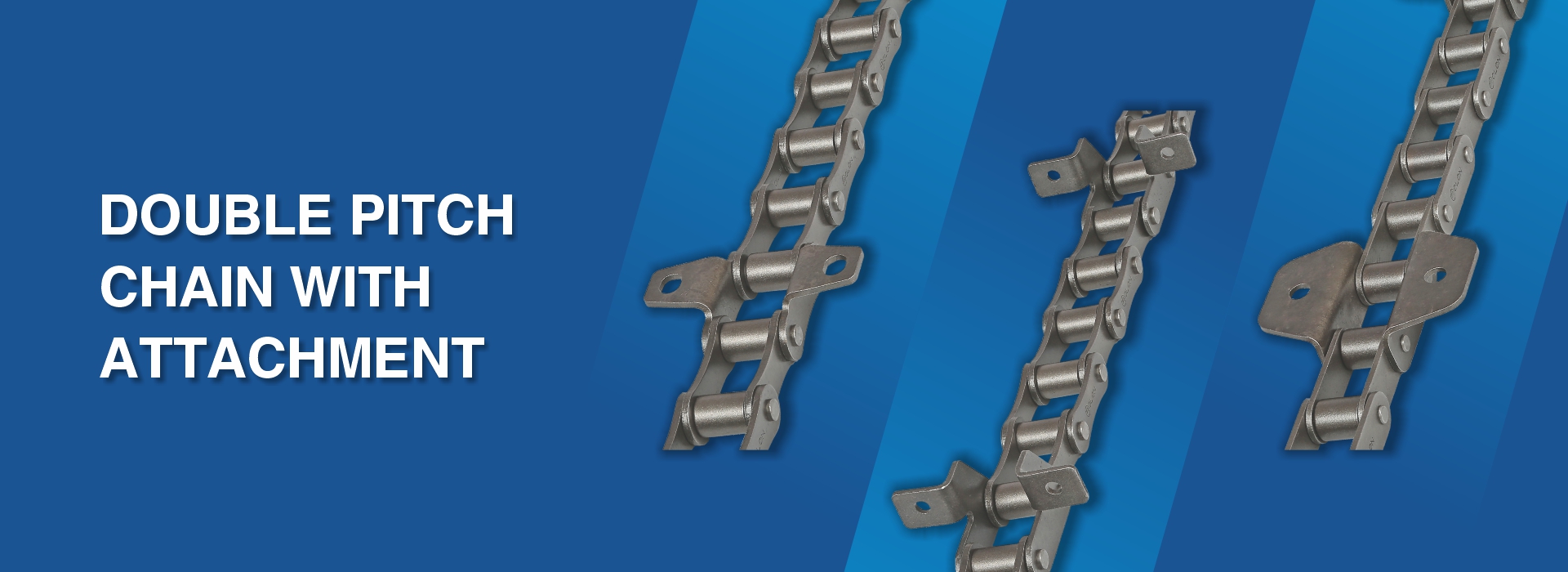

DOUBLE PITCH CHAIN WITH ATTACHMENT

Home » Products » Double Pitch Chains with Attachments

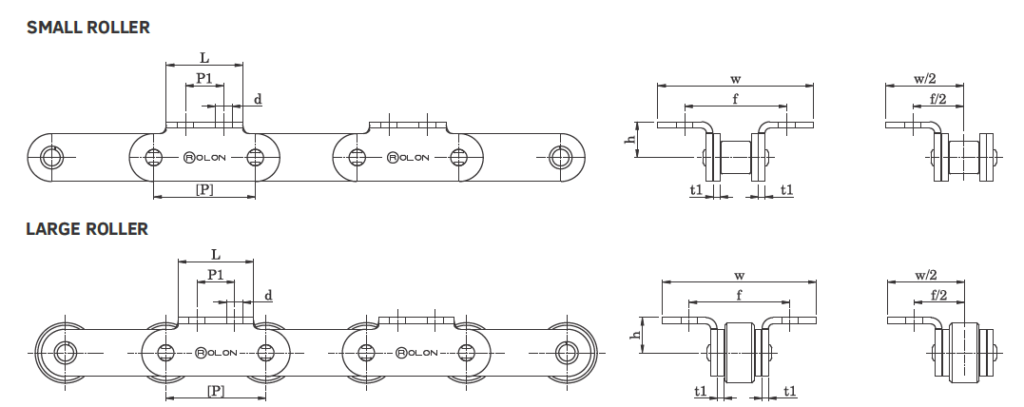

DOUBLE PITCH ROLLER CHAIN WITH K1 ATTACHMENT

ANSI / ASME B 29.4M / ISO 1275

ROLON
Part No		 ISO
Part No		 Pitch Attachment
Width		 Platform
Height		 Attachment
Hole Diameter		 Traverse Distance
b/w Hole Centre		 Overall Width Inner Plate
Thickness		 Outer Plate
Thickness
P
mm		 L (Nom)
mm		 h (Nom)
mm		 d (Min)
mm		 f (Nom)
mm		 w (Nom)
mm		 t1 (Nom)
mm		 t2 (Nom)
mm
R2040SC204025.4019.009.123.3325.4038.101.501.50
R2042SC2042
R2050SC205031.7523.8011.135.0831.7548.402.002.00
R2052SC2052
R2060SC206038.1028.6014.685.0842.8861.002.402.40
R2062SC2062
R2060HSC2060H38.1028.6014.685.0842.8865.003.203.20
R2062HSC2062H
R2080SC208050.8038.1019.056.6355.5880.003.203.20
R2082SC2082
R2080HSC2080H50.8038.1019.056.6355.5884.004.004.00
R2082HSC2082H

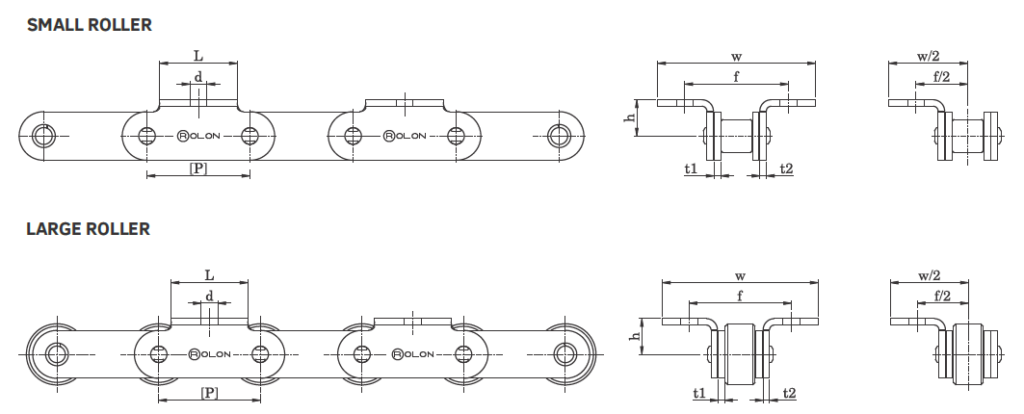

DOUBLE PITCH ROLLER CHAIN WITH K2 ATTACHMENT

ANSI / ASME B 29.4M / ISO 1275

ROLON
Part No		 ISO
Part No		 Pitch Attachment
Width		 Platform
Height		 Attachment
Hole Diameter		 Attachment
Hole Pitch		 Traverse Distance
b/w Hole Centre		 Overall Width Inner Plate
Thickness		 Outer Plate
Thickness
P
mm		 L (Nom)
mm		 h (Nom)
mm		 d (Min)
mm		 P1
mm		 f (Nom)
mm		 w (Nom)
mm		 t1 (Nom)
mm		 t2 (Nom)
mm
R2040S C2040 25.40 19.00 9.12 3.33 9.52 25.40 38.10 1.50 1.50
R2042S C2042
R2050S C2050 31.75 23.80 11.13 5.08 11.91 31.75 48.40 2.00 2.00
R2052S C2052
R2060S C2060 38.10 28.60 14.68 5.08 14.27 42.88 61.00 2.40 2.40
R2062S C2062
R2060HS C2060H 38.10 28.60 14.68 5.08 14.27 42.88 65.00 3.20 3.20
R2062HS C2062H
R2080S C2080 50.80 38.10 19.05 6.63 19.05 55.58 80.00 3.20 3.20
R2082S C2082
R2080HS C2080H 50.80 38.10 19.05 6.63 19.05 55.58 84.00 4.00 4.00
R2082HS C2082H
