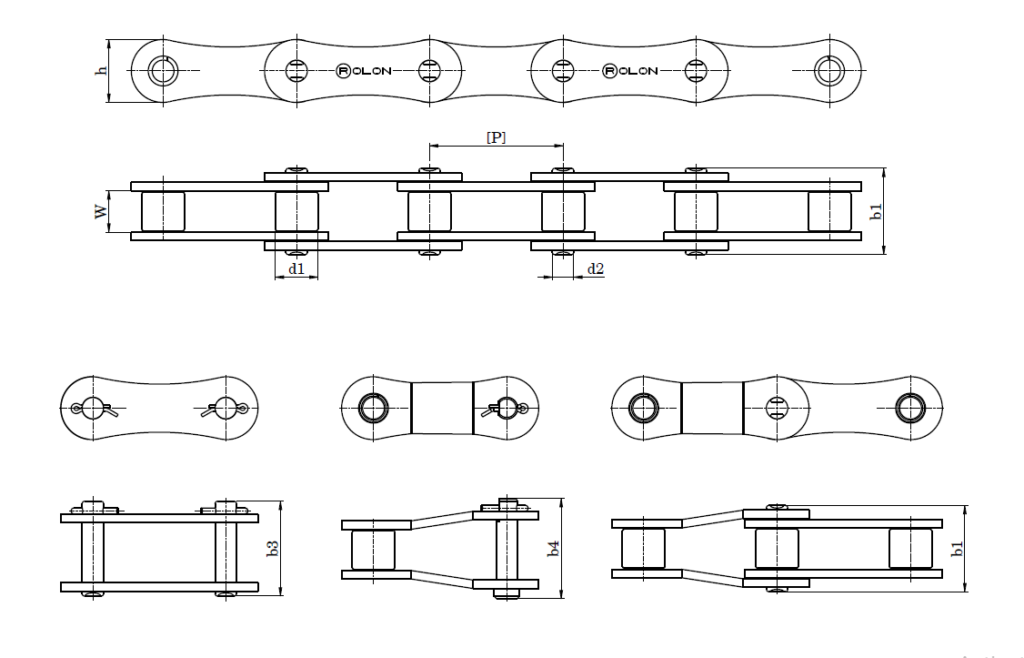

ANSI STANDARD DOUBLE PITCH DRIVE CHAINS

(ANSI / ASME B 23.9M / ISO 1275)

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
R2040	2040	25.40	7.85	7.92	17.80	3.98	21.70	12.07	21.70	1418	0.46
R2050	2050	31.75	9.40	10.16	21.80	5.09	25.90	15.09	25.90	2223	0.77
R2060	2060	38.10	12.57	11.91	26.90	5.96	31.50	18.10	31.50	3192	1.14
R2080	2080	50.80	15.75	15.88	33.50	7.94	38.90	24.13	38.90	5670	1.97

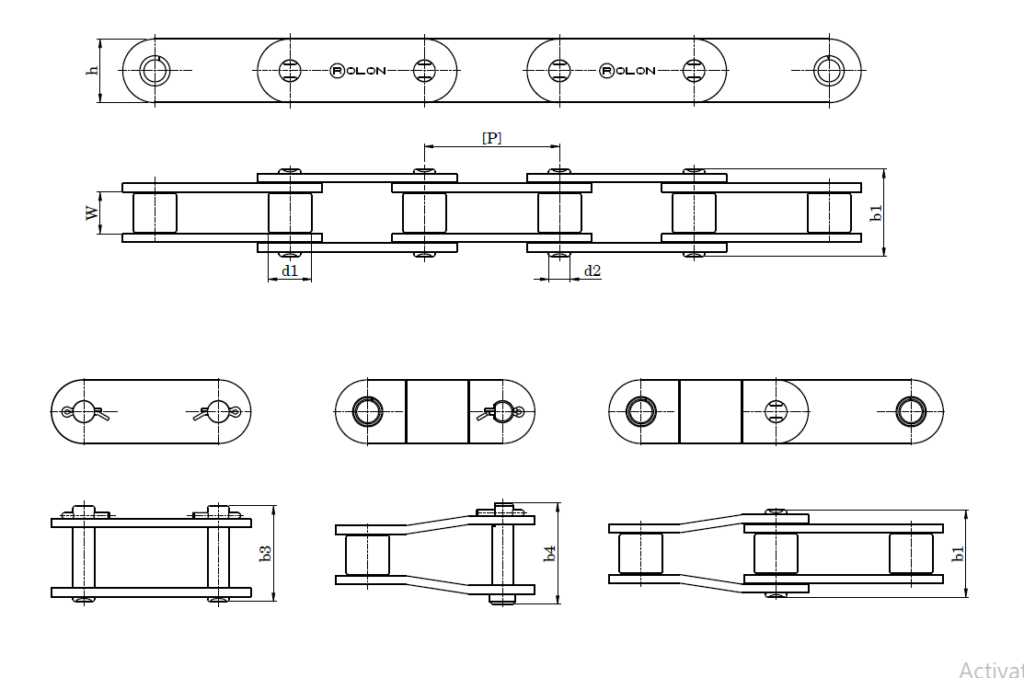

ANSI STANDARD DOUBLE PITCH CONVEYOR CHAINS - SMALL ROLLER

(ANSI / ASME B 23.9M / ISO 1275)

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
R2040S	C2040	25.40	7.85	7.92	17.80	3.98	21.70	12.07	21.70	1418	0.50
R2050S	C2050	31.75	9.40	10.16	21.80	5.09	25.90	15.09	25.90	2223	0.84
R2060S	C2060	38.10	12.57	11.91	26.90	5.96	31.50	18.10	31.50	3192	1.22
R2060HS	C2060H	38.10	12.57	11.91	30.20	5.96	34.80	18.10	34.80	3192	1.53
R2080S	C2080	50.80	15.75	15.88	33.50	7.94	38.90	24.13	38.90	5670	2.12
R2080HS	C2080H	50.80	15.75	15.88	37.40	7.94	42.80	24.13	42.80	5670	2.49

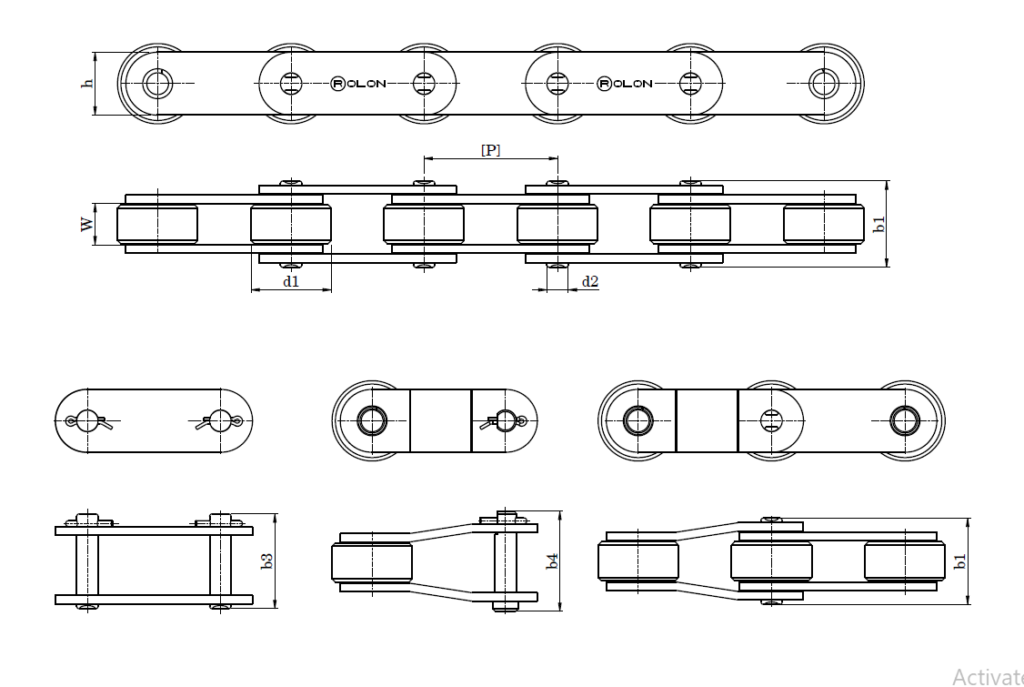

ANSI STANDARD DOUBLE PITCH CONVEYOR CHAINS - LARGE ROLLER

(ANSI / ASME B 23.9M / ISO 1275)

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
ROLON Part No.	ISO Part No	P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Cotter b3 (Max) mm	(Min) kgf	kg/m
R2042S	C2042	25.40	7.85	15.88	17.80	3.98	21.70	12.07	21.70	1418	0.83
R2052S	C2052	31.75	9.40	19.05	21.80	5.09	25.90	15.09	25.90	2223	1.30
R2062S	C2062	38.10	12.57	22.23	26.90	5.96	31.50	18.10	31.50	3192	1.90
R2062HS	C2062H	38.10	12.57	22.23	30.20	5.96	34.80	18.10	34.80	3192	2.21
R2082S	C2082	50.80	15.75	28.58	33.50	7.94	38.90	24.13	38.90	5670	3.14
R2082HS	C2082H	50.80	15.75	28.58	37.40	7.94	42.80	24.13	42.80	5670	3.50
