HOLLOW PIN CHAINS
| ROLON Part No. |
ISO Part No |

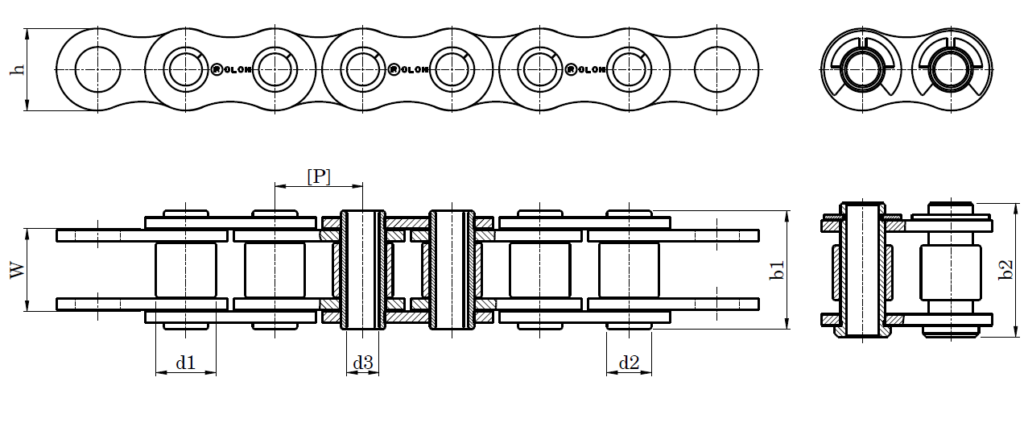

Pitch | WBOP | Roller Dia | Plate Height | Pin Outer Dia | Pin Inner Dia | Pin Height | Connecting Pin height |
Tensile Strength |
Average Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P mm |
W (Min)
mm |
d1 (Max) mm |
h (Max)
mm |
d2 (Max)
mm |
d3 (Max)
mm |
b1 (Max)
mm |
Circlip Type b2 (Max) mm |
(Min)
kgf |
kg/m | ||
| R428HP | – | 12.70 | 11.43 | 8.51 | 11.81 | 6.36 | 4.50 | 17.00 | 20.90 | 1300 | 0.61 |
| R1595HP | – | 15.875 | 13.41 | 10.16 | 14.73 | 7.16 | 5.13 | 19.60 | 23.70 | 2000 | 0.81 |
| R1911HP | – | 19.05 | 15.75 | 12.07 | 16.13 | 8.63 | 5.77 | 22.70 | 27.30 | 2400 | 1.07 |
| R2517HP | – | 25.40 | 25.58 | 15.88 | 21.08 | 11.63 | 8.33 | 36.10 | 41.50 | 5485 | 2.32 |
