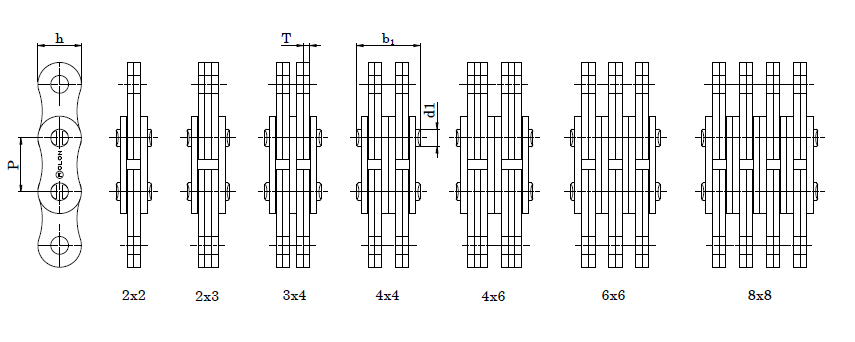

LEAF CHAIN - ANSI STANDARD - HEAVY SERIES

ROLON Part No.	ISO Part No	ANSI Part No	Lacing	Pitch	Plate		Pin		Tensile Strength	Average Weight
					Height	Thickness	Dia	Height
				P mm	h (Max) mm	T (Max) mm	d1 (Max) mm	b1 (Max) mm	(Min) kgf	kg/m
LH 0822	LH 0822	BL 422	2x2	12.70	12.07	2.08	5.09	11.10	2264	0.62
LH 0823	LH 0823	BL 423	2x3					13.20	2264	0.76
LH 0834	LH 0834	BL 434	3x4					17.40	3406	1.06
LH 0844	LH 0844	BL 444	4x4					19.60	4538	1.20
LH 0846	LH 0846	BL 446	4x6					23.80	4538	1.49
LH 0866	LH 0866	BL 466	6x6					28.00	6802	1.79
LH 0888	LH 0888	BL 488	8x8					36.40	9066	2.37
LH 1022	LH 1022	BL 522	2x2	15.875	15.09	2.48	5.96	12.90	3406	0.93
LH 1023	LH 1023	BL 523	2x3					15.40	3406	1.16
LH 1034	LH 1034	BL 534	3x4					20.40	4987	1.61
LH 1044	LH 1044	BL 544	4x4					22.80	6802	1.83
LH 1046	LH 1046	BL 546	4x6					27.70	6802	2.28
LH 1066	LH 1066	BL 566	6x6					32.70	10208	2.73
LH 1088	LH 1088	BL 588	8x8					42.60	13613	3.62
LH 1222	LH 1222	BL 622	2x2	19.05	18.11	3.30	7.94	17.40	4987	1.46
LH 1223	LH 1223	BL 623	2x3					20.80	4987	1.83
LH 1234	LH 1234	BL 634	3x4					27.50	7710	2.54
LH 1244	LH 1244	BL 644	4x4					30.80	9984	2.87
LH 1246	LH 1246	BL 646	4x6					37.50	9984	3.59
LH 1266	LH 1266	BL 666	6x6					44.20	14970	4.27
LH 1288	LH 1288	BL 688	8x8					57.60	19956	5.67
LH 1622	LH 1622	BL 822	2x2	25.40	24.13	4.09	9.54	21.40	8617	2.50
LH 1623	LH 1623	BL 823	2x3					25.50	8617	3.10
LH 1634	LH 1634	BL 834	3x4					33.80	13155	4.29
LH 1644	LH 1644	BL 844	4x4					37.90	17234	4.89
LH 1646	LH 1646	BL 846	4x6					46.20	17234	6.29
LH 1666	LH 1666	BL 866	6x6					54.50	25861	7.09
LH 1688	LH 1688	BL 888	8x8					71.00	34467	9.69

LEAF CHAIN - DIN STANDARD - LIGHT SERIES

ROLON Part No.	ISO Part No	Lacing	Pitch	Plate		Pin		Tensile Strength	Average Weight
				Height	Thickness	Dia	Height
			P mm	h (Max) mm	T (Max) mm	d1 (Max) mm	b1 (Max) mm	(Min) kgf	kg/m
LL 0822	LL 0822	2x2	12.70	10.92	1.55	4.45	8.50	1836	0.39
LL 0823	LL 0823	2x3					10.10	1836	0.48
LL 0834	LL 0834	3x4					13.00	2754	0.66
LL 0844	LL 0844	4x4					14.60	3671	0.76
LL 0846	LL 0846	4x6					17.60	3671	0.94
LL 0866	LL 0866	6x6					20.70	5507	1.12
LL 0888	LL 0888	8x8					26.80	7342	1.49
LL 1022	LL 1022	2x2	15.875	13.72	1.65	5.08	9.30	2243	0.54
LL 1023	LL 1023	2x3					11.00	2243	0.67
LL 1034	LL 1034	3x4					14.40	3366	0.93
LL 1044	LL 1044	4x4					16.10	4487	1.05
LL 1046	LL 1046	4x6					19.50	4487	1.31
LL 1066	LL 1066	6x6					22.90	6731	1.57
LL 1088	LL 1088	8x8					29.70	8974	2.08
LL 1222	LL 1222	2x2	19.05	16.13	1.90	5.72	10.70	2957	0.73
LL 1223	LL 1223	2x3					12.60	2957	0.91
LL 1234	LL 1234	3x4					16.50	4436	1.26
LL 1244	LL 1244	4x4					18.50	5915	1.43
LL 1246	LL 1246	4x6					22.40	5915	1.78
LL 1266	LL 1266	6x6					26.30	8872	2.13
LL 1288	LL 1288	8x8					34.10	11829	2.83
LL 1622	LL 1622	2x2	25.40	21.08	3.20	8.28	17.20	6119	1.58
LL 1623	LL 1623	2x3					20.40	6119	1.96
LL 1634	LL 1634	3x4					26.90	9178	2.72
LL 1644	LL 1644	4x4					30.20	12237	3.10
LL 1646	LL 1646	4x6					36.70	12237	3.86
LL 1666	LL 1666	6x6					43.20	18355	4.61
LL 1688	LL 1688	8x8					56.20	24474	6.12
LL 2422	LL 2422	2x2	38.10	33.40	5.20	14.63	28.40	17336	4.24
LL 2423	LL 2423	2x3					33.60	17336	5.26
LL 2434	LL 2434	3x4					44.00	26003	7.30
LL 2444	LL 2444	4x4					49.40	34671	8.31
LL 2446	LL 2446	4x6					59.60	34671	10.35
LL 2466	LL 2466	6x6					70.40	52006	12.37
LL 2488	LL 2488	8x8					91.40	69341	16.46

LEAF CHAIN - AL SERIES

ROLON Part No.	Lacing	Pitch	Plate		Pin		Tensile Strength	Average Weight
			Height	Thickness	Dia	Height
		P mm	h (Max) mm	T (Max) mm	d1 (Max) mm	b1 (Max) mm	(Min) kgf	kg/m
AL 422	2x2	12.70	10.42	1.55	3.98	8.80	1700	0.39
AL 444	4x4					15.00	3400	0.75

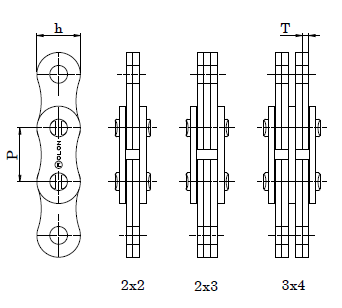

ROLON SERIES LEAF CHAIN

ROLON Part No.	Lacing	Pitch	Plate		Pin		Tensile Strength	Average Weight
			Height	Thickness	Dia	Height
		P mm	h (Max) mm	T (Max) mm	d1 (Max) mm	b1 (Max) mm	(Min) kgf	kg/m
L 1222	2x2	12.00	11.20	2.08	4.45	10.50	1900	0.57
L 1223	2x3					13.00	1900	0.71
L 1234	3x4					17.10	3800	0.98
