FLAT CARD CHAIN

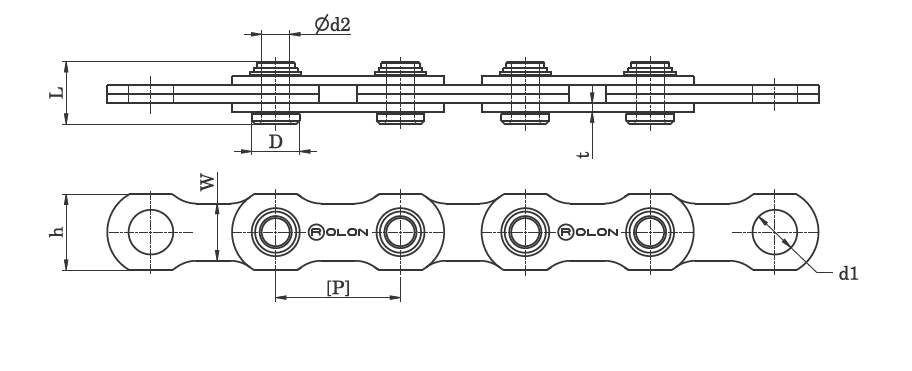

ROLON Part No	Pitch	Stay Width	Plate Width	Plate Bore	Plate Thickness	Bush Height	Bush Bore	Bush Head Outer Dia	Average Weight
	P mm	W (Nom) mm	h (Nom) mm	d1 (Min) mm	t (Nom) mm	L (Nom) mm	d2 (Min) mm	D (Nom) mm	kg/m
RT66H	36.50	16.70	22.20	13.01	2.60	18.20	8.20	14.00	1.34

FLAT CARD CHAIN

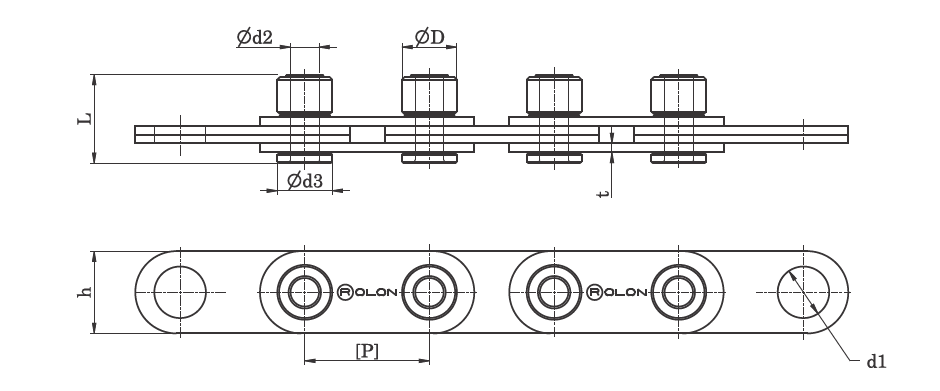

ROLON Part No.	Pitch	Plate Width	Plate Bore	Plate Thickness	Bush Height	Bush Bore	Bush Head Outer Dia	Roller Outer Dia	Average Weight
	P mm	h (Nom) mm	d1 (Min) mm	t (Nom) mm	L (Nom) mm	d2 (Min) mm	D (Nom) mm	D (Nom) mm	kg/m
RT499	36.50	24.00	15.00	2.60	25.90	8.20	16.00	16.00	1.87

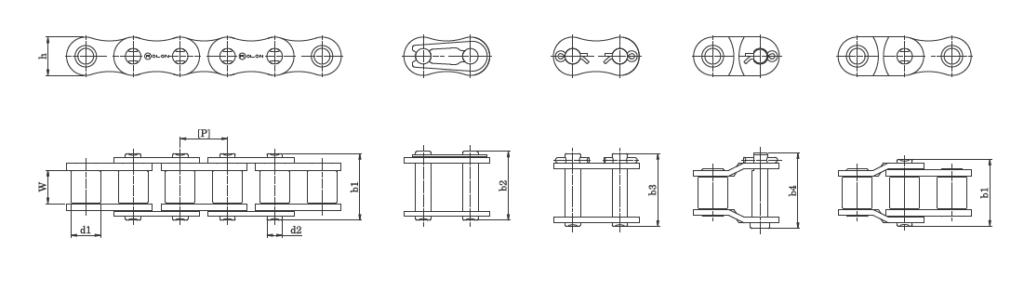

STANDARD ROLLER CHAINS FOR TEXTILE APPLICATION - SIMPLEX

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
		P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
RS135	-	12.70	4.80	7.75	12.90	4.10	14.40	10.42	14.40	1200	0.41
RT420	-	12.70	6.40	7.77	15.00	3.97	17.50	11.80	17.50	1600	0.61
# R957	06B-1	9.525	5.72	6.35	13.50	3.28	16.80	8.26	16.80	908	0.42
R1278	08B-1	12.70	7.75	8.51	17.00	4.51	20.90	11.81	20.90	1816	0.71
R1595	10B-1	15.875	9.65	10.16	19.60	5.08	23.70	14.73	23.70	2264	0.95
R1911	12B-1	19.05	11.68	12.07	22.70	5.72	27.30	16.13	27.30	2947	1.21
R2517	16B-1	25.40	17.02	15.88	36.10	8.28	41.50	21.08	41.50	6119	2.71

# STRAIGHT SIDED PLATE CHAIN

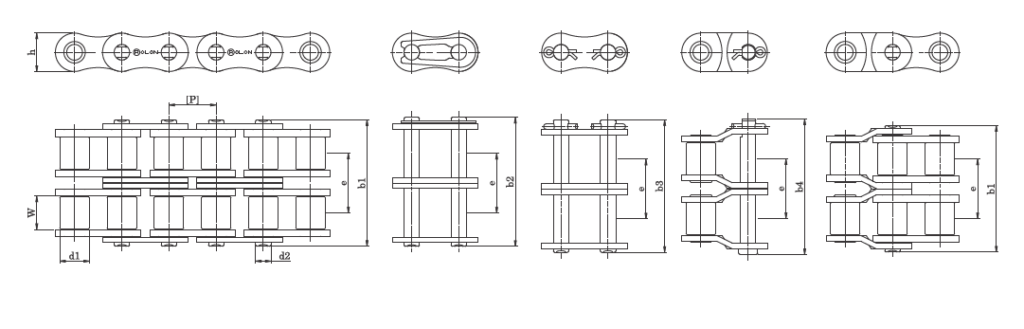

STANDARD ROLLER CHAINS FOR TEXTILE APPLICATION - DUPLEX

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
		P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
#DR957	06B-2	9.525	5.72	6.35	23.80	3.28	10.24	27.10	8.26	27.10	1724	0.77
DR1278	08B-2	12.70	7.75	8.51	31.00	4.51	13.92	34.90	11.81	34.90	3172	1.34
DR1595	10B-2	15.875	9.65	10.16	36.20	5.08	16.59	40.30	14.73	40.30	4538	1.88
DR1911	12B-2	19.05	11.68	12.07	42.20	5.72	19.46	46.80	16.13	46.80	5894	2.39
DR2517	16B-2	25.40	17.02	15.88	68.00	8.28	31.88	73.40	21.08	73.40	10809	5.38

# STRAIGHT SIDED PLATE CHAIN

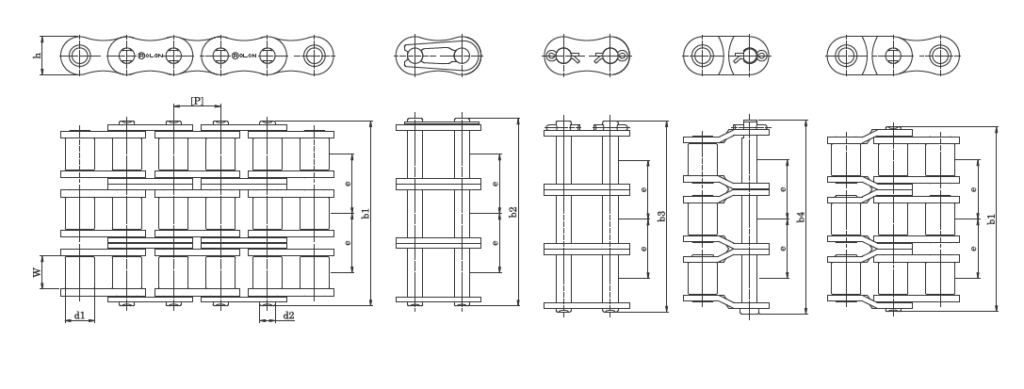

STANDARD ROLLER CHAINS FOR TEXTILE APPLICATION - TRIPLEX

ROLON Part No.	ISO Part No	Pitch	WBIP	Roller Dia	Pin Height	Pin Dia	Transverse Pitch	Overall Width	Inner Plate Height	Connecting Pin Width	Tensile Strength	Average Weight
		P mm	W (Min) mm	d1 (Max) mm	b1 (Max) mm	d2 (Max) mm	e mm	b4 (Max) mm	h (Max) mm	Spring Clip b2 (Max) mm	(Min) kgf	kg/m
#TR957	06B-3	9.525	5.72	6.35	34.00	3.28	10.24	37.30	8.26	37.30	2540	1.13
TR1278	08B-3	12.70	7.75	8.51	44.90	4.51	13.92	48.80	11.81	48.80	4538	1.97
TR1595	10B-3	15.875	9.65	10.16	52.80	5.08	16.59	56.90	14.73	56.90	6802	2.80
TR1911	12B-3	19.05	11.68	12.07	61.70	5.72	19.46	66.30	16.13	66.30	8841	3.57
TR2517	16B-3	25.40	17.02	15.88	99.90	8.28	31.88	105.30	21.08	105.30	16316	8.09

# STRAIGHT SIDED PLATE CHAIN

LEAF CHAINS FOR TEXTILE APPLICATION

ROLON Part No.	Lacing	Pitch	Plate		Pin		Tensile Strength	Average Weight
			Height	Thickness	Dia	Height
		P mm	h (Max) mm	T (Max) mm	d1 (Max) mm	b1 (Max) mm	(Min) kgf	kg/m
L 1222	2x2	12.00	11.20	2.08	4.45	10.50	1900	0.57
L 1223	2x3					13.00	1900	0.71
L 1234	3x4					17.10	3800	0.98
